Hollow Metal Doors in Kitchener: 15 Stairwell Doors with Sidelites for the Grand River Hospital Parking Garage

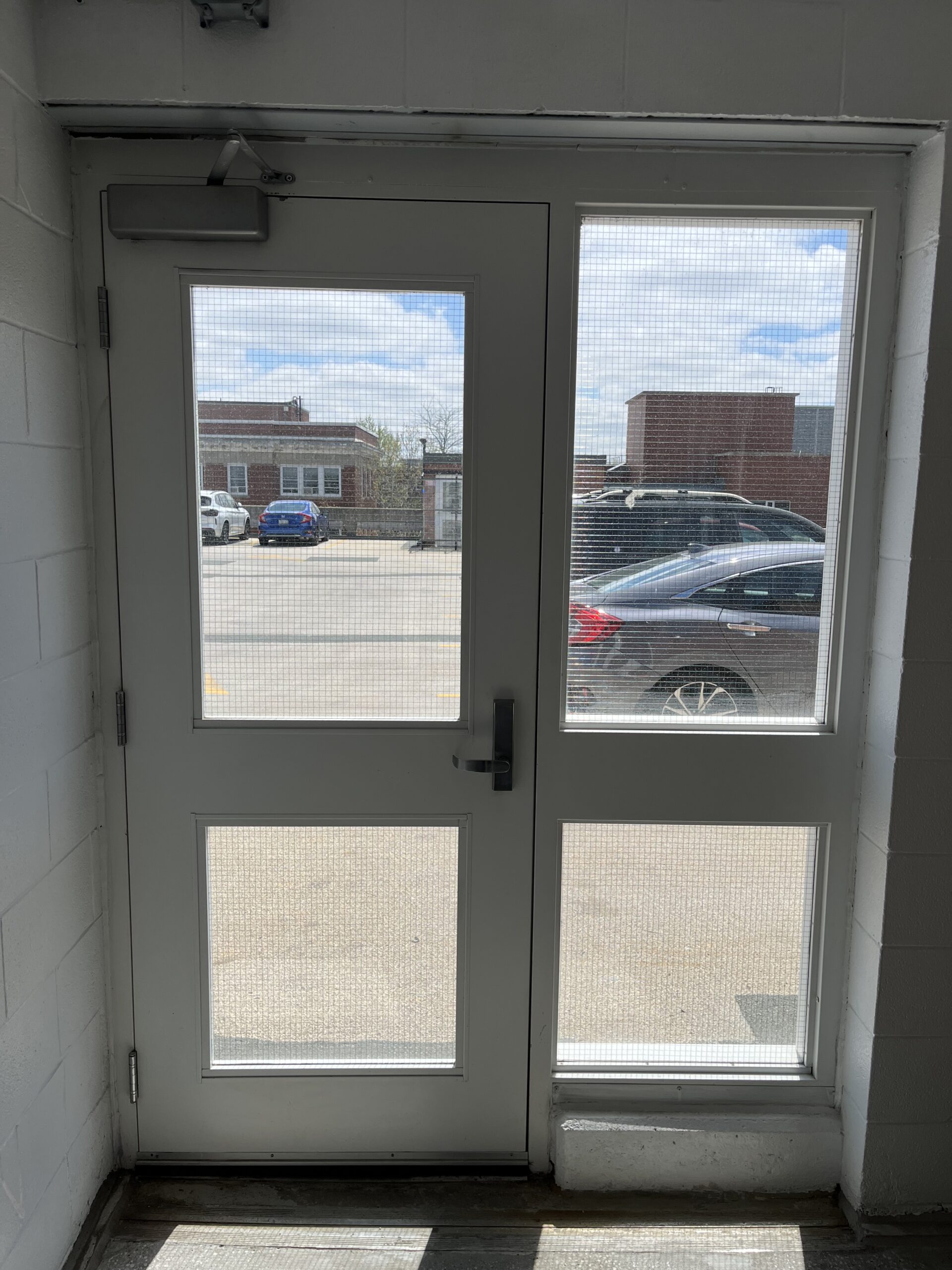

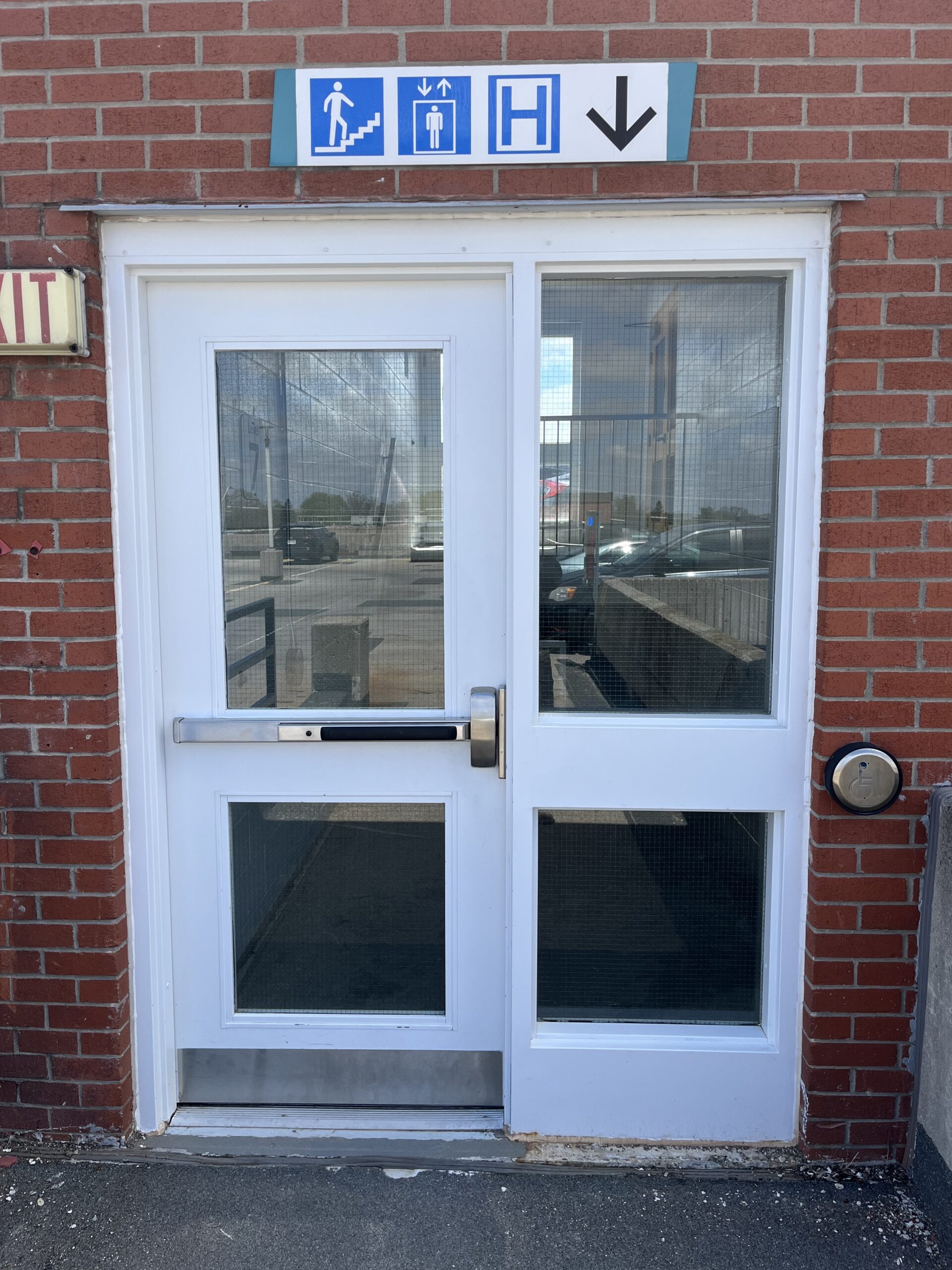

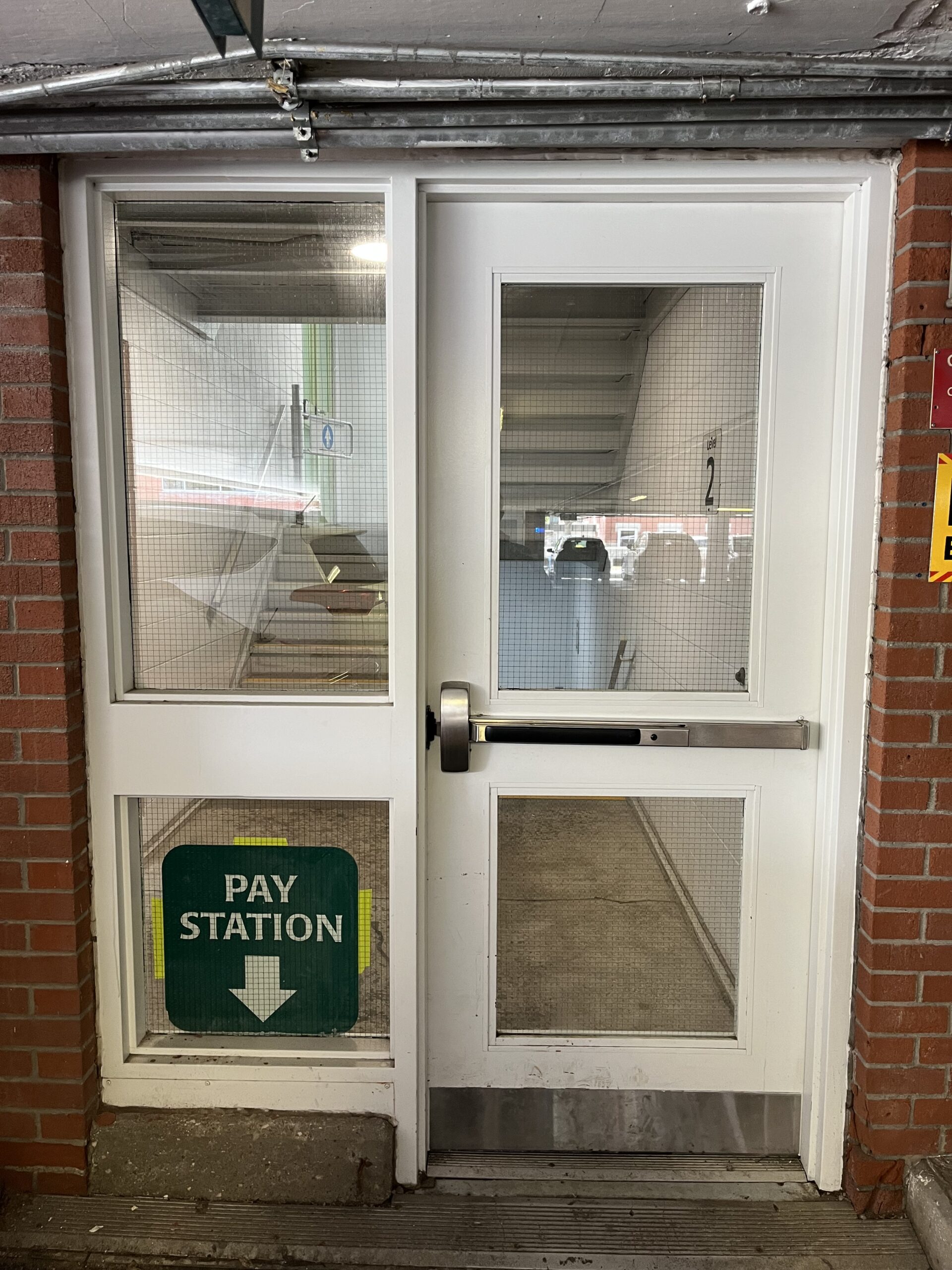

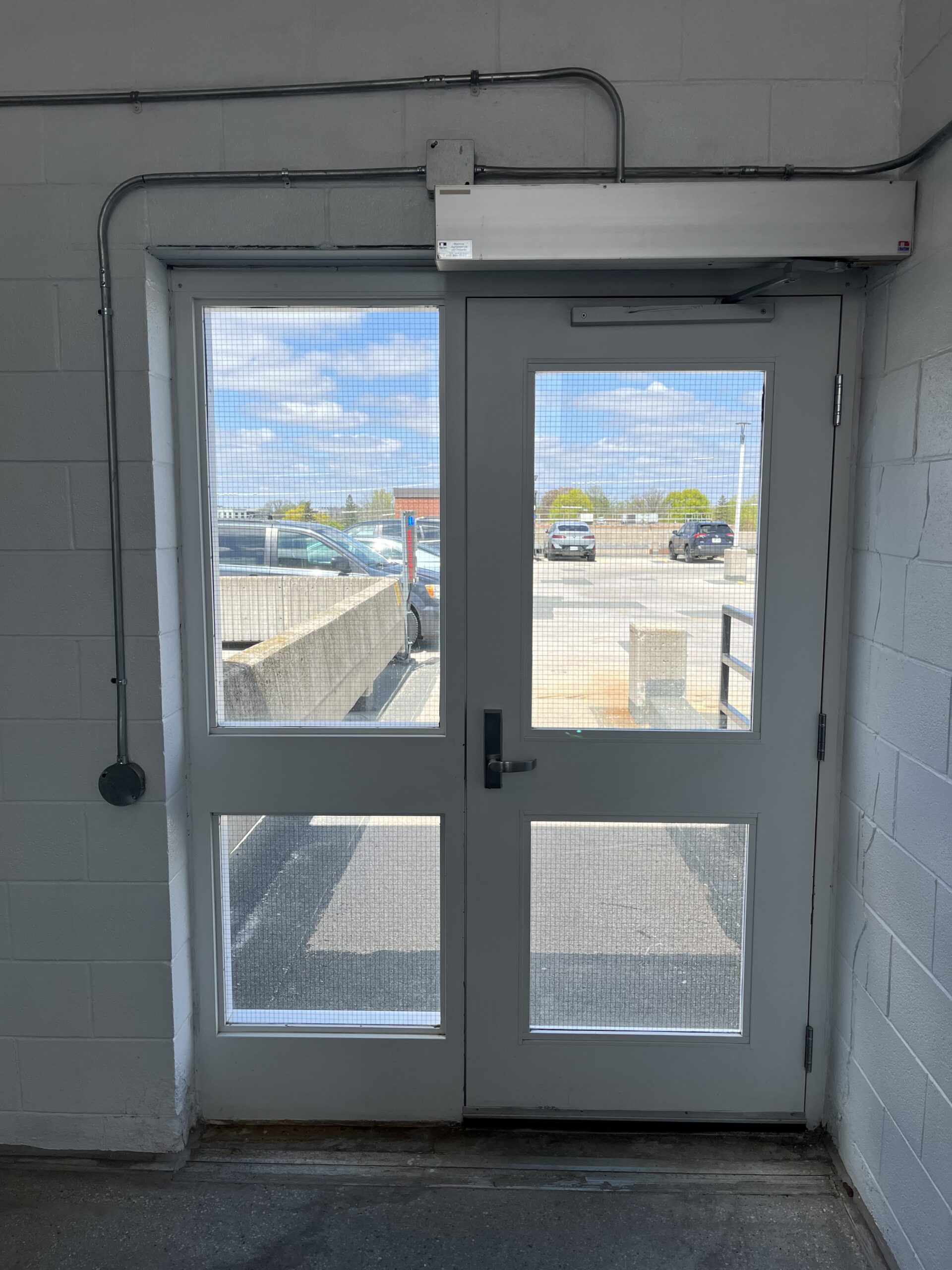

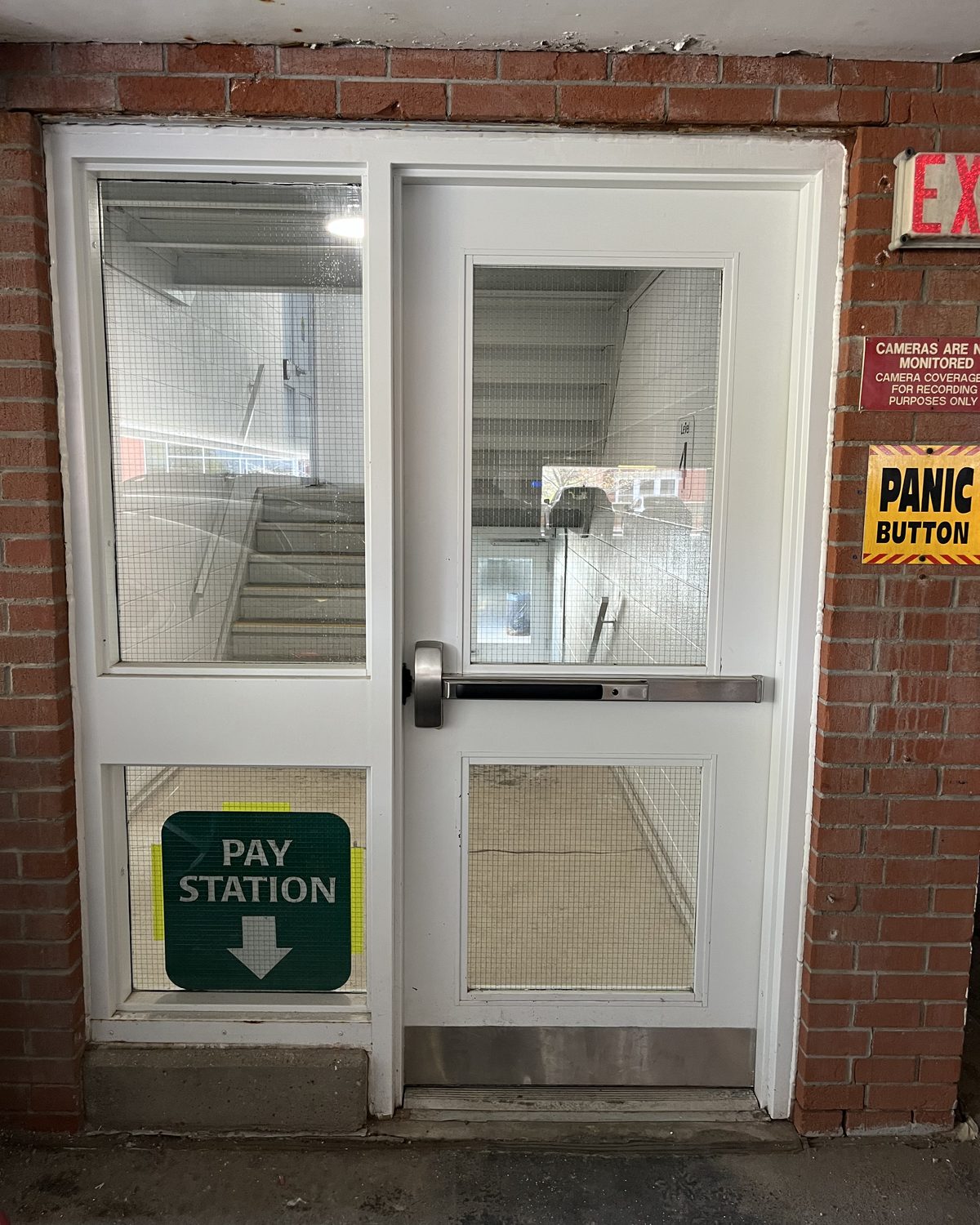

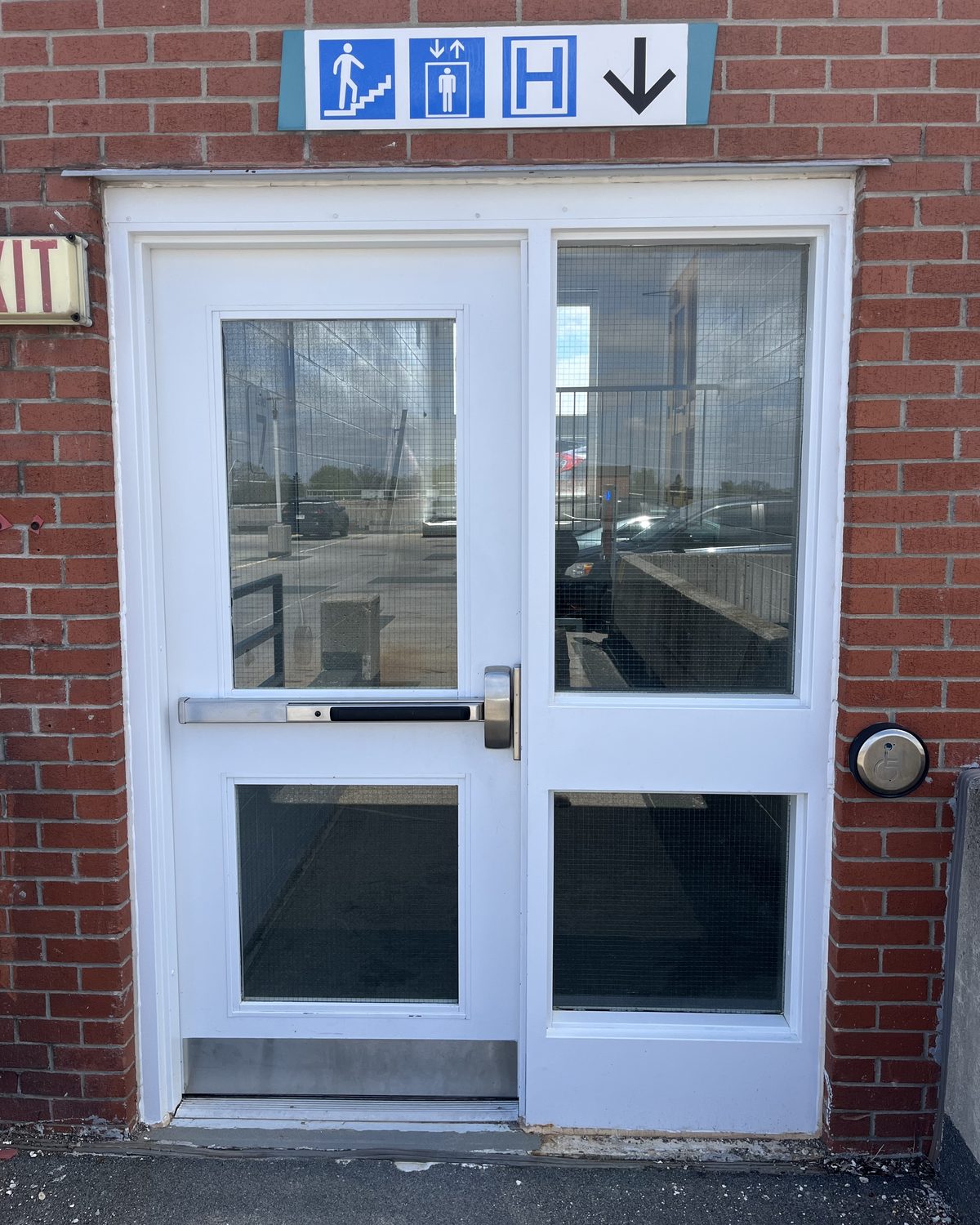

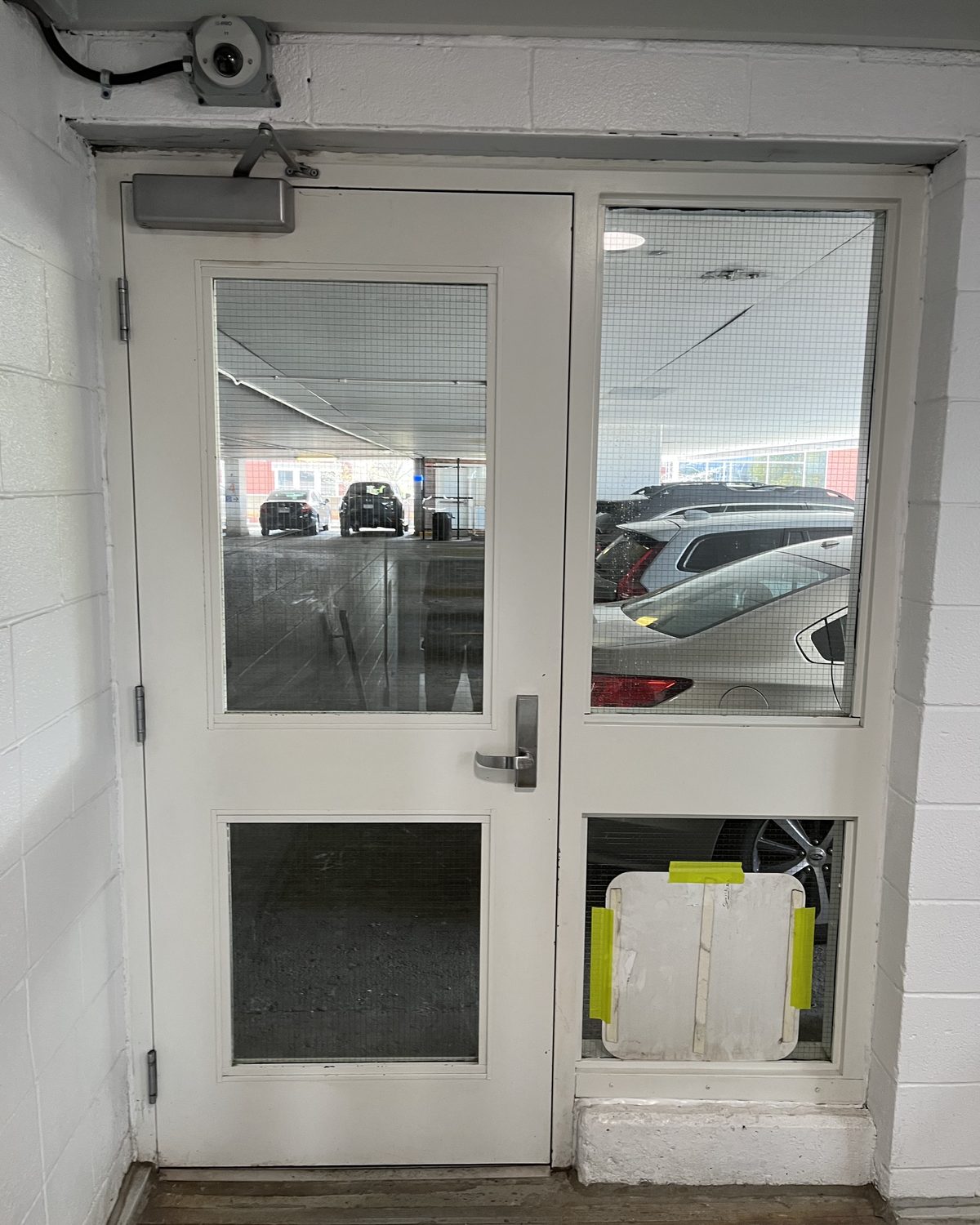

Fifteen hollow metal doors in welded frames with sidelites, Sargent panic bars and LCN closers, replacing the old stairwell doors in the Grand River Hospital parking garage in Kitchener during its restoration, for Complete Concrete Restoration as general contractor. Installed one stairwell at a time, April to June 2024, while the garage stayed open.
The job in numbers
| Doors | 15 hollow metal doors with sidelites |
|---|---|
| Frames | Welded metal frames |
| Supplier | All Steel Doors Ltd |
| Exit devices | Sargent 80 series panic bars with passage trim |
| Closers | LCN 4040XP |
| Client | Grand River Hospital, Kitchener |
| General contractor | Complete Concrete Restoration Ltd. |
| Location | Kitchener, Ontario |
| Installed | April to June 2024 |

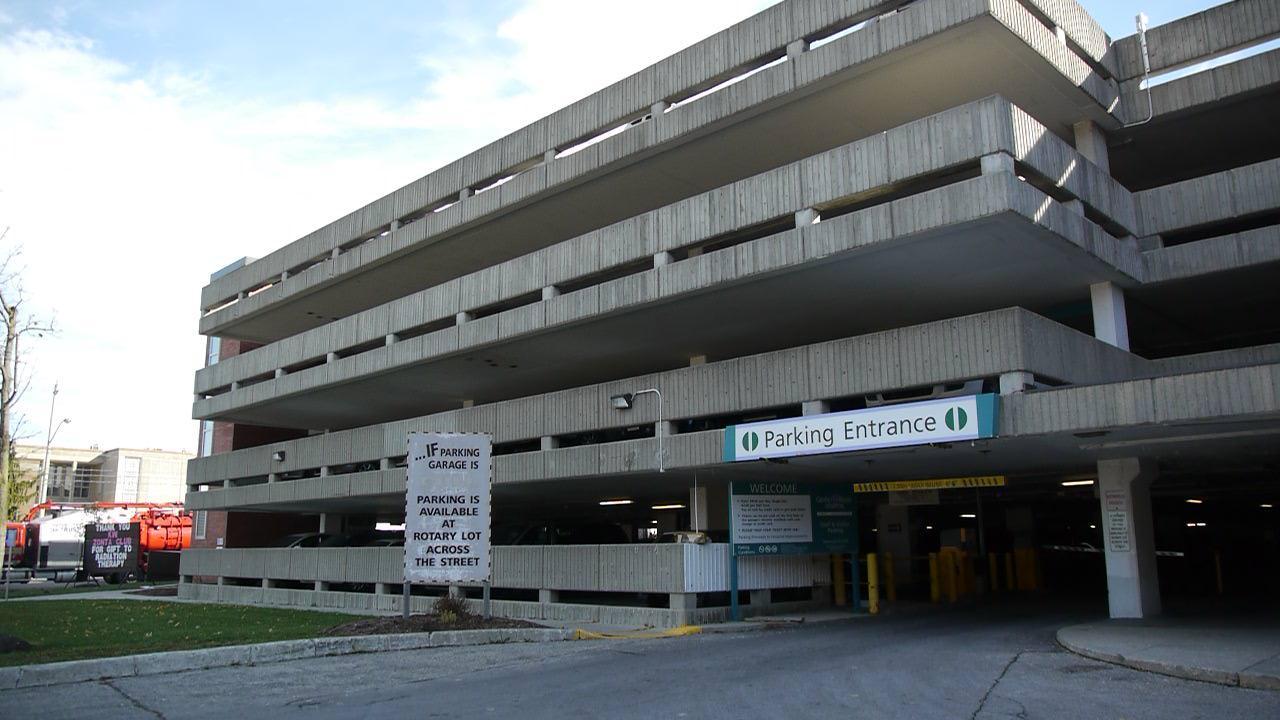

The multi-level parking garage at Grand River Hospital in Kitchener was being restored, and its stairwell doors were part of the work. Complete Concrete Restoration was the general contractor. Canuck removed and hauled away the old door systems and supplied and installed fifteen new hollow metal doors in welded frames, with sidelites and the hardware the hospital asked for.
The garage serves patients and visitors, so it could not close. That decided how every door went in.
Four decades of doors for names Ontario knows — Canada’s Wonderland, Tim Hortons, Canadian Tire, the LCBO, Metrolinx, Marriott & Hilton hotels, the University of Toronto — plus thousands of businesses across the GTA. Dependable people, quality products, since 1979.
What went in
| Doors | 15 hollow metal doors with sidelites, from All Steel Doors Ltd |
|---|---|
| Frames | Welded metal frames |
| Exit devices | Sargent 80 series panic bars with passage trim |
| Closers | LCN 4040XP |
The job was first quoted with a different brand of hardware. The hospital asked for something more durable and higher-end, and the specification was changed to Sargent panic bars and LCN 4040XP closers. In a parking garage stairwell, where every door is used all day, that is a sensible upgrade. Some of the hardware came from the US, and it arrived as planned.
One stairwell at a time
Patients and visitors had to be able to use the garage throughout. The doors were replaced one stairwell at a time, so there was always a way in and out.
Replacing every stairwell door at once would have closed the garage. Instead, the crew finished one stairwell before starting the next, so traffic kept flowing through the others.
Storage was the second problem. A busy hospital garage has nowhere to keep doors and frames. So the crew brought only what they expected to install each day, which meant planning the order of work and deliveries opening by opening.
A year between the order and the install
We received the project in June 2023. The hospital reviewed the drawings carefully before approving them in July, and the products went into production right away. They were ready in September, but the garage restoration was not ready for new doors. Installation started in April 2024 and finished in June 2024.
Questions this job answers
Can doors be replaced in a parking garage that stays open?
Yes, by working one stairwell at a time so there is always another way in and out. That is how this garage stayed open while fifteen doors were replaced.
What hardware suits a parking garage stairwell?
Heavy-duty hardware, because the doors are used constantly. This job used Sargent 80 series panic bars with passage trim and LCN 4040XP closers.

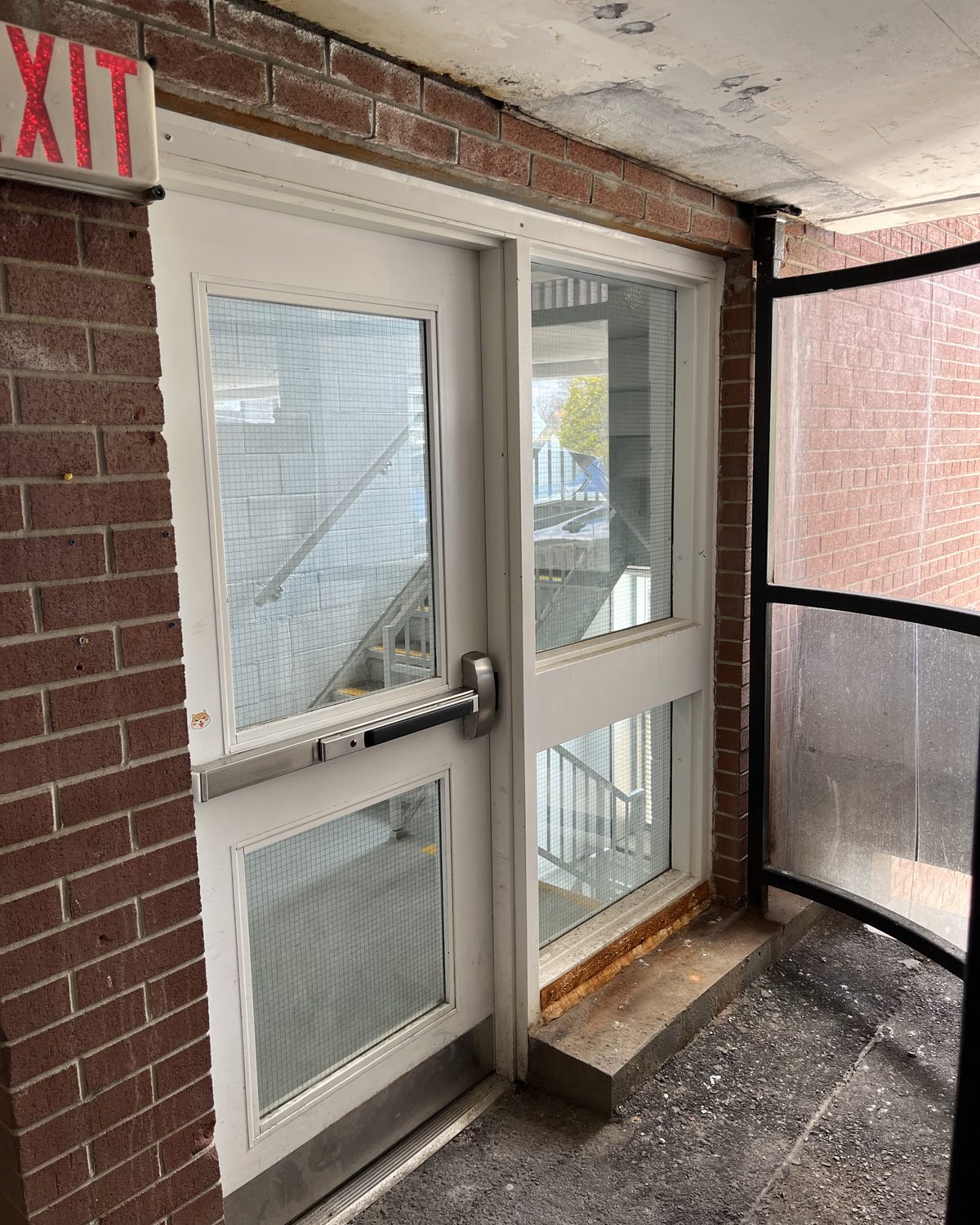

What is a sidelite on a steel door?
A fixed glazed panel beside the door, in the same frame. It lets people see through before they open the door, which matters in a stairwell.
What if the site isn't ready when the doors are?
The doors wait. On this job they were ready in September 2023, and installed from April 2024, once the site was ready.
Where this sits
This was hollow metal door and commercial door hardware work in a hospital parking garage in Kitchener. For the same work on your building, start with the commercial doors in Kitchener page.
